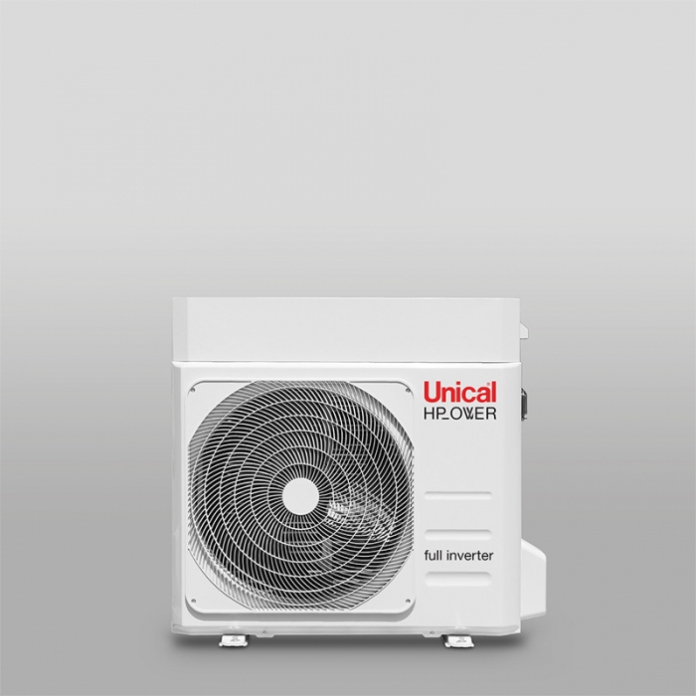

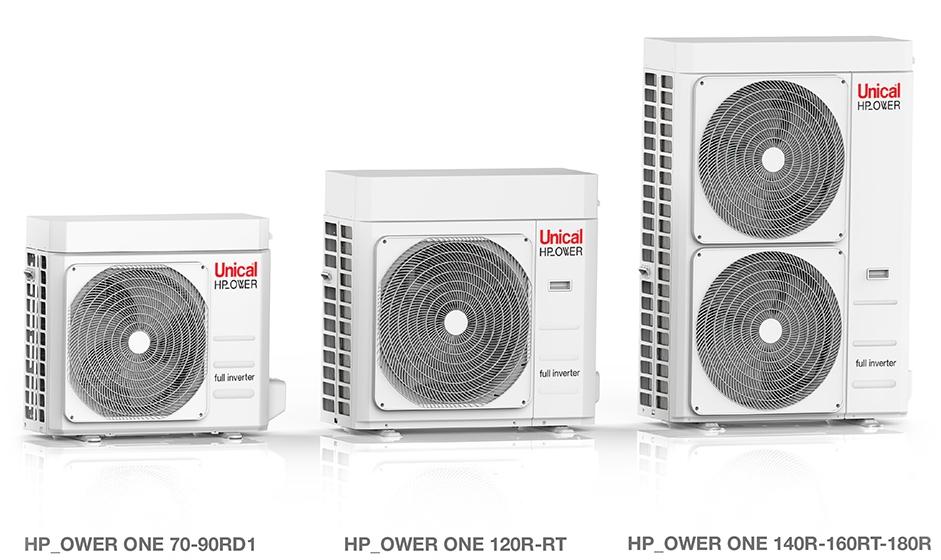

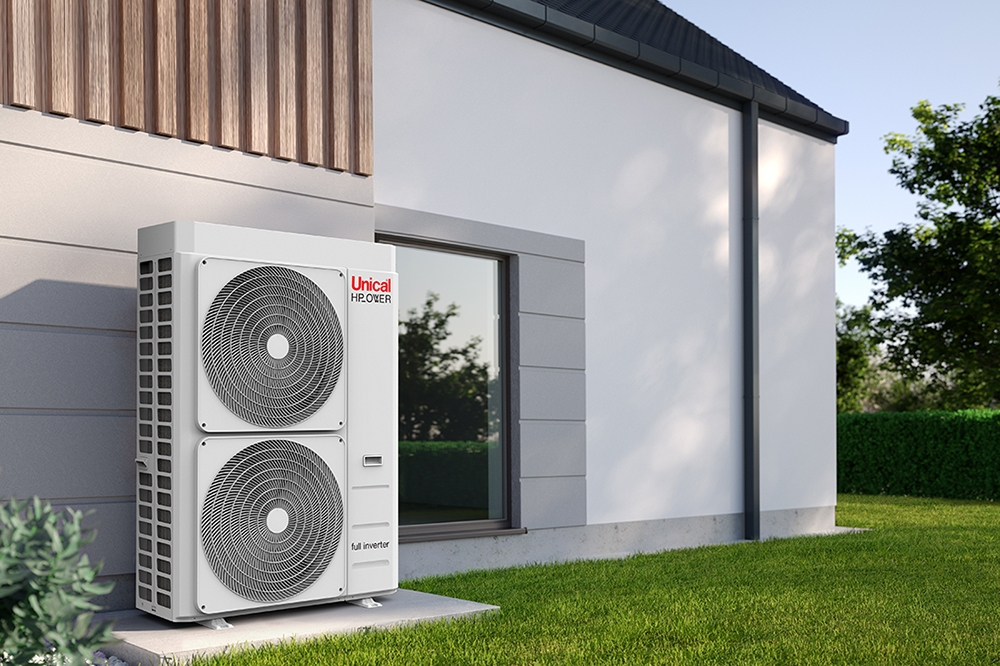

Air-water Heat Pumps

HP-OWER ONE R

• Air-water, full inverter, high efficiency heat pump, available in 7 models
• Efficiency Class A+++
  C.O.P. up to 4.85
  E.E.R. up to 5.40
• Low absorption and noisiness, twin rotary, DC INVERTER compressor
• DC INVERTER BRUSHLESS fan motors
• INVERTER circulators with high efficiency BRUSHLESS MOTOR
• Flow temperatures up to 60°C
• Operation up to -20°C
• PREASSEMBLED hydronic kit composed of: safety valve at 6 bar, air vent, INVERTER circulator, circulation flow-switch
• High efficiency, stainless steel, water/gas plate heat exchanger, patented for R32
• Air-gas heat exchanger made of copper pipes with aluminium fins and anti-corrosion treatment.
• D.H.W. production through a dedicated storage tank
• Refrigerant R32
• Integrated digital regulator
• Touch screen remote control (optional)
• Management of integration source through integral climatic controller
• Standard supplied thermo-controller with management of modulating flow temperature
• Management through outer controller with 0-10 V signal (optional)
• Management through external ON-OFF programmer (optional)
• Automatic management of electric heater for D.H.W. tank
• Automatic defrosting function
• Compressor case pre-heating for low temperatures
• Auto-restart

Self-diagnosis

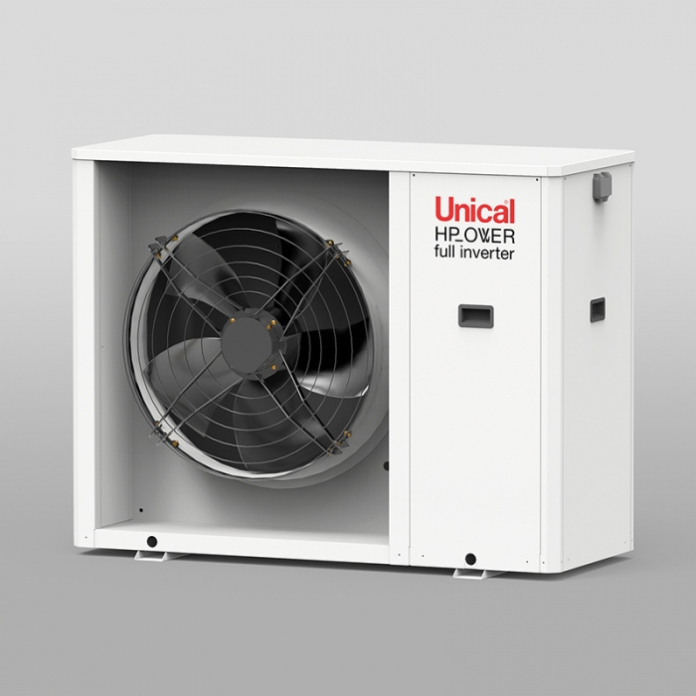

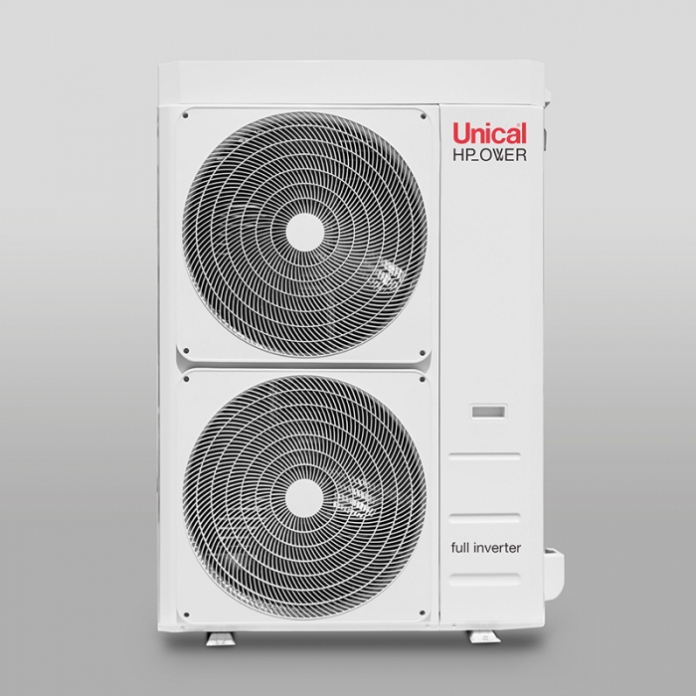

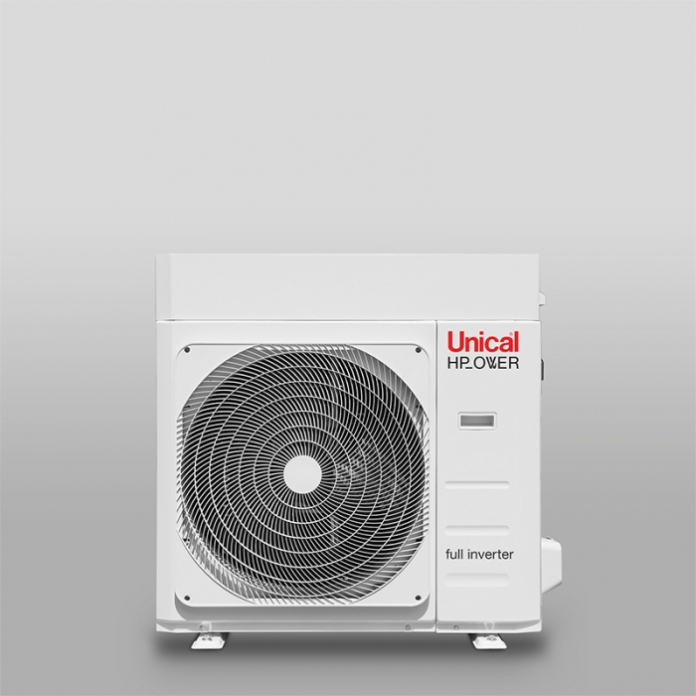

Air-water Heat Pumps

HP-OWER 260-320RK

Ultra-compact heat pumps, full inverter,
high efficiency, R32 refrigerant, designed for heating, cooling and DHW production Outdoor installation.

• Power range: 26 kW - 32 kW
• Energy Class A++
  C.O.P. up to 4.09
  E.E.R. up to 4.71
• Possibility to configure in cascade up to 7 machines
• Ultra-compact dimensions in relation to the output power and absorbed power
• Production of hot water up to 60 °C,
  winter operation down to -20 °C
• Maximum Hz function for 6% power increase
• Positioning flexibility guaranteed by compact dimensions and horizontal ejection
• TWIN ROTARY DC Inverter compressors with double balanced rotor, guarantee of greater performances and reduced noise emissions
• High modulation and low noise EC Brushless Fan Motor
• Axial fan with high acoustic comfort blades, thanks to the wing profile with anti-swirling flow shaping, the cause of annoying noises
• High efficiency inverter circulator standard supplied
  Water-gas exchanger in stainless steel AISI 304 with high efficiency and heat exchange
• “FAN SILENT” mode, which activates a reduction of the motor frequencies increasing the silence of the system
• Standard antifreeze kit to optimize the operation of the heat pump in conditions of unfavorable temperatures, consisting of low absorption heating cables, with automatic management and pre-wired electrical connection
• HYDRONIC KIT equipped with:
  - High efficiency water-gas plate heat exchanger in stainless steel, for R32
  - Integrated modulating INVERTER circulator
  - Circulation and protection flow switch
  - Automatic air vent, safety valve (6 bar) and fill / drain cock
• Air-gas exchanger in copper pipes and aluminium fins. Geometrically designed to have the highest heat exchange and lowest pressure drops
• Possibility of management via ModBus.

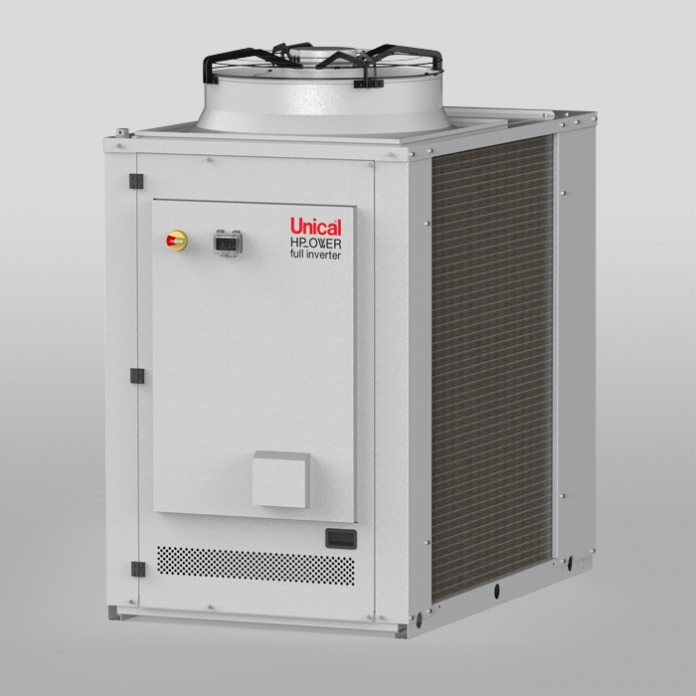

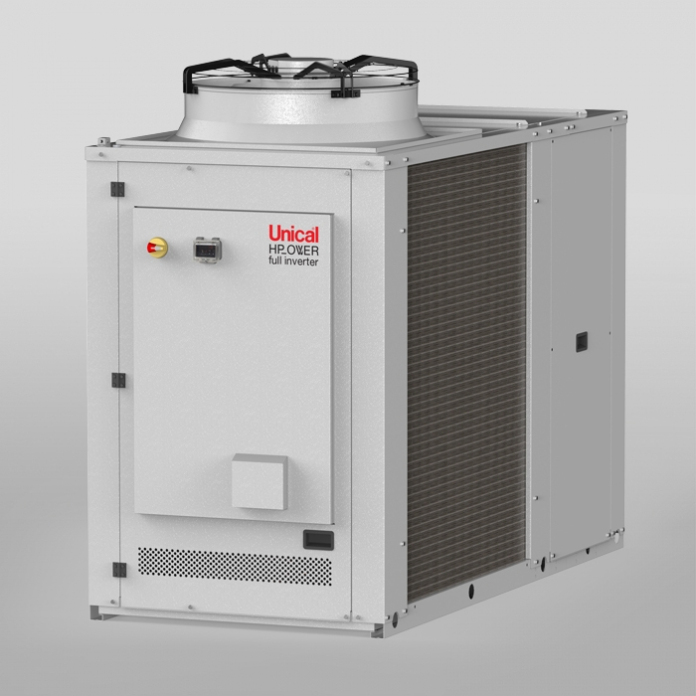

Air-water Heat Pumps

HP-OWER 500-700RK

High efficiency “Full inverter” heat pumps, R32 refrigerant, designed for heating, cooling and DHW preparation. Outdoor installation.

• Power range: 50 kW-70 kW
• Energy class A ++
  C.O.P. up to 4.11
  E.E.R. up to 4.25
• Modularity up to 490 kW (possibility of cascading up to 7 machines)
• Low absorption DC SCROLL INVERTER compressors, with limited noise emissions and continuous progressive modulation.
• EC (Electronic Commutation) BRUSHLESS INVERTER fan motor with air flow modulation for maximum efficiency
• Patented asymmetrical stainless-steel water-gas exchanger, for R32 refrigerant
• Air-gas heat exchanger made of copper pipes with aluminum fins for a greater exchange surface
• Refrigerant R32
• Integrated digital regulator for monitoring, control, setting of heat pump parameters and complete system configuration
• Preparation management of DHW storage tank (such as Enerboil) or combined storage tank of Technical Water with DHW production (such as Multipower)
• INVERTER circulator, integrated as standard
• Standard supplied antifreeze kit for protection of the plate exchanger (through heating cables) and inverter circulator
• Weatherproof box with removable panels for maximum accessibility to the refrigeration and hydraulic circuits
• Silenced version “SLN” with “Super Low Noise” Kit, consisting of a fan diffuser to facilitate the expulsion of air with consequent reduction of the fan speed, and a thermoacoustic coat of the compressor to reduce noise emissions and heat losses
• Management options:
  - via ModBUS protocol
  - with 0-10 Volt external control unit
  - ON / OFF chrono thermostat
• Auto restart and Self-diagnosis

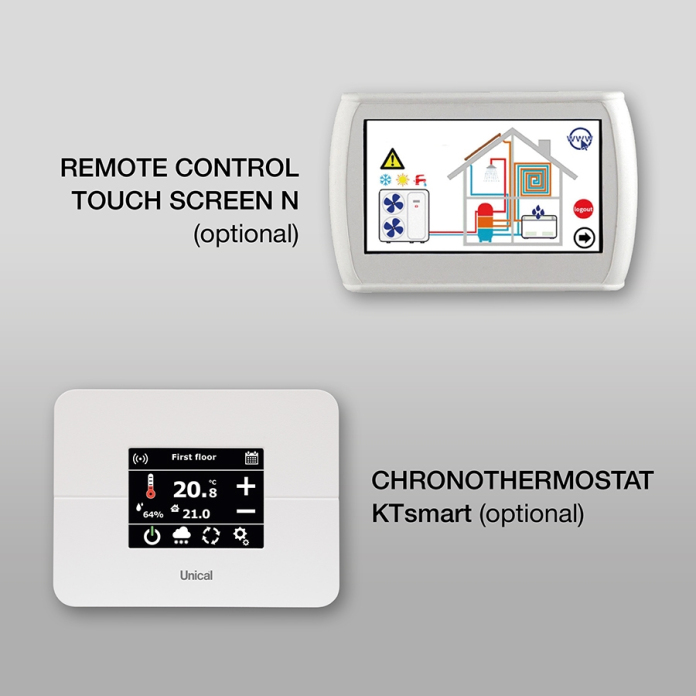

• Colour Touch screen Remote control (optional), for system configuration and module cascade management.

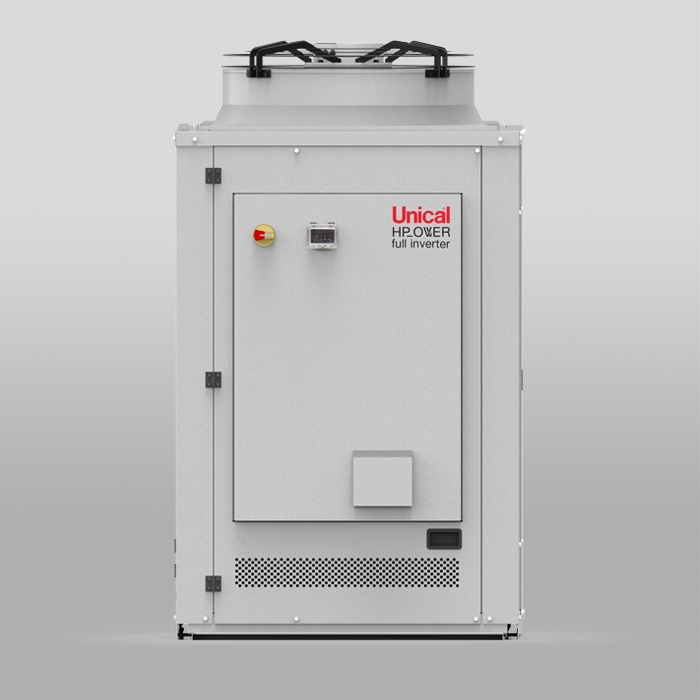

Air-water Heat Pumps

HP-OWER 500-700RK A400

High efficiency “Full inverter” heat pumps, R32 refrigerant, designed for heating, cooling and DHW preparation. Outdoor installation with integrated storage.

• Power range: 50 kW-70 kW
• Energy class A ++
  C.O.P. up to 4.11
  E.E.R. up to 4.25
• Modularity up to 490 kW (possibility of cascading up to 7 machines)
• Low absorption DC SCROLL INVERTER compressors, with limited noise emissions and continuous progressive modulation.
• EC (Electronic Commutation) BRUSHLESS INVERTER fan motor with air flow modulation for maximum efficiency
• Patented asymmetrical stainless-steel water-gas exchanger, for R32 refrigerant
• Air-gas heat exchanger made of copper pipes with aluminum fins for a greater exchange surface
• Refrigerant R32
• Integrated digital regulator for monitoring, control, setting of heat pump parameters and complete system configuration
• Preparation management of DHW storage tank (such as Enerboil) or combined storage tank of Technical Water with DHW production (such as Multipower)
• INVERTER circulator, integrated as standard
• Standard supplied antifreeze kit for protection of the plate exchanger (through heating cables) and inverter circulator
• Weatherproof box with removable panels for maximum accessibility to the refrigeration and hydraulic circuits
• Inertial storage tank (400 liter) integrated in the heat pump box for complete outdoor installation
• Management options:
  - via ModBUS protocol
  - with 0-10 Volt external control unit
  - ON / OFF chrono thermostat
• Silenced version “SLN” with “Super Low Noise” Kit, consisting of a fan diffuser to facilitate the expulsion of air with consequent reduction of the fan speed, and a thermoacoustic coat of the compressor to reduce noise emissions and heat losses
• Auto restart and Self-diagnosis

Colour Touch screen Remote control (optional), for system configuration and module cascade management.

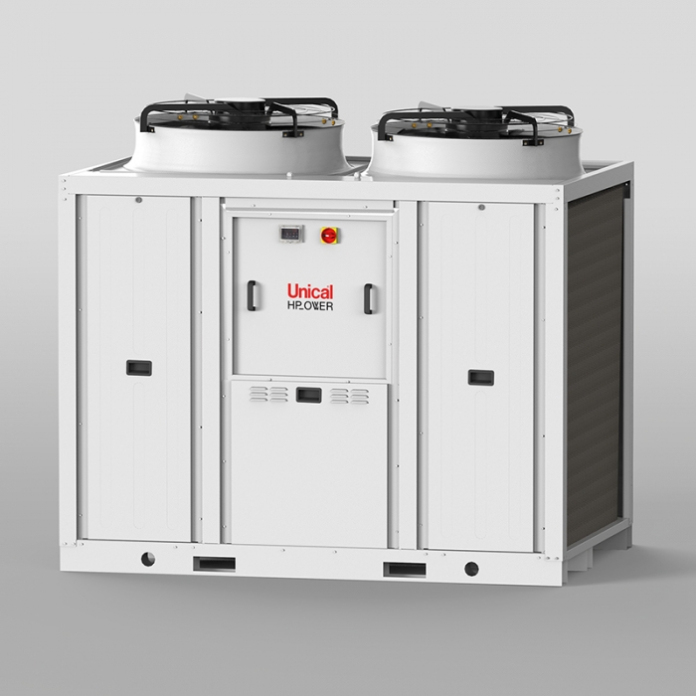

Air-water Heat Pumps

HP-OWER 1150N

High efficiency air-water DC INVERTER heat pump with very high shutting and double refrigerant circuit, R410A refrigerant, fully wired and pre-assembled, designed for heating, cooling and DHW preparation.
Outdoor installation, resistant to atmospheric agents thanks to the hot-dip galvanized sheet and painted, after processing, with polyurethane powders in the oven at 180 °C.

• “Full inverter” Air-Water heat pump
• High efficiency, Energy Class A+
  C.O.P. = 3.90
  E.E.R. = 3.65
• Extraordinary 1:16 modulation ratio to optimize operating consumption
• Double refrigerant circuit, powered by 6 scroll compressors that ensure reliability and operating safety even in the event of a component failure, avoiding the complete blocking of the machine
• Possibility to configure up to 7 machines in cascade
• Sequential defrosting of the circuits to avoid downtime
• Intelligent electronics that equally shares the operation hours of the compressors, increasing the useful life of the system
• LN silencing as standard, consisting of soundproofed compressor housing, guarantee of reduced noise emissions
• Standard antifreeze kit to optimize the operation of the heat pump in unfavorable temperature conditions, consisting of low absorption heating cables with automatic management and pre-wired electrical connection
• Low energy consumption DC INVERTER fan motors
• Resistance to atmospheric agents guaranteed by galvanized sheet metal casing and polyurethane painting
• Air-gas exchanger in copper pipes and aluminium fins. Geometrically designed to have the highest heat exchange and lowest pressure drops
• Electrical panel board with IP54 protection degree, with dedicated door to facilitate installation and maintenance works
• Control system to monitor and adapt the performance of the inverter compressor, circulator and fan, together with the INVERTER technology and the on-board sensors
• HYDRONIC KIT equipped with:
  - Patented high efficiency water-gas, stainless steel plate exchanger for R410A conceived with double refrigerant circuit and single hydraulic circuit.
  - Integrated modulating INVERTER circulator
  - Circulation and protection flow switch
  - Automatic air vent valve, safety valve (6 bar) and fill & drain cock.
• Integrated system configurator with expansion modules for I / O resources and MODBUS connection port
• Flow temperatures: up to 57 °C
• Operating limit outside temperature:
  -15 °C (Heating) + 46 °C (Cooling).

Heat pump water heater

HP 110

Wall hung heat pump for D.H.W. production

• D.H.W. production up to 70°C
• 110 litres storage tank with double anticorrosion enamelling, “made in Italy”
• Total insulation in high thickness PU foam
• Anti-contamination and anti-encrustation copper coil heat exchanger outside the storage tank
• Magnesium anode
• Operational temperature range: -5 / +43 °C
• Integrated touch screen control
• Integrated anti-legionella function
• Fixing template for simplified wall installation
• Hydraulic connections positioned in the lower part
• Dedicated contact for photovoltaic energy optimization with automatic set-point temperature raising of the D.H.W. production
• Rotary compressor for maximum efficiency and quietness of the unit
• ON-OFF contact to start the unit from external switch
• Integrated electric heater 1.5 kW
• Easy maintenance thanks to the possibility to cut off the refrigerant circuit independently from the water circuit
• Electronic expansion valve
• Timer
• Auto-restart with automatic restart in case of electrical blackout
• Self-diagnosis
• Smart solution for indoor installations in residential applications
• External cladding in painted sheet metal with epoxy powders
• Antifreeze function
• Available operating modes: Green, Boost, E-heater, Auto, Fan

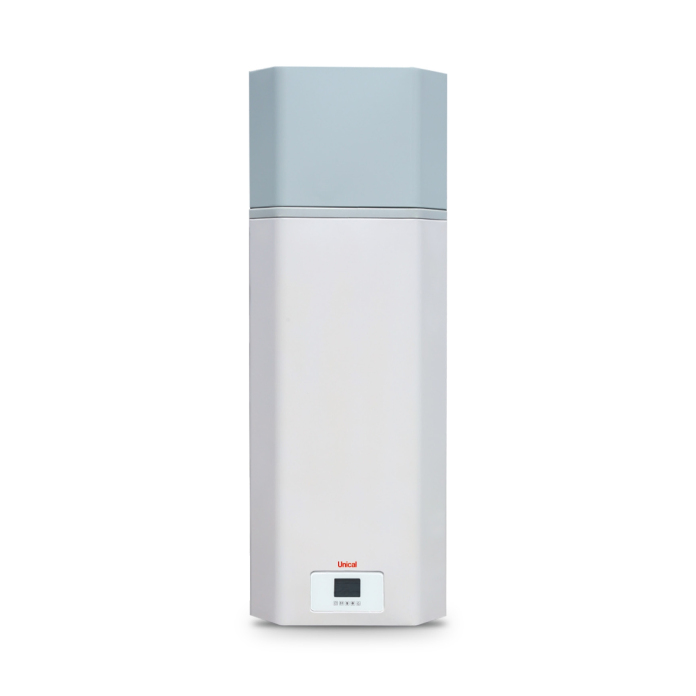

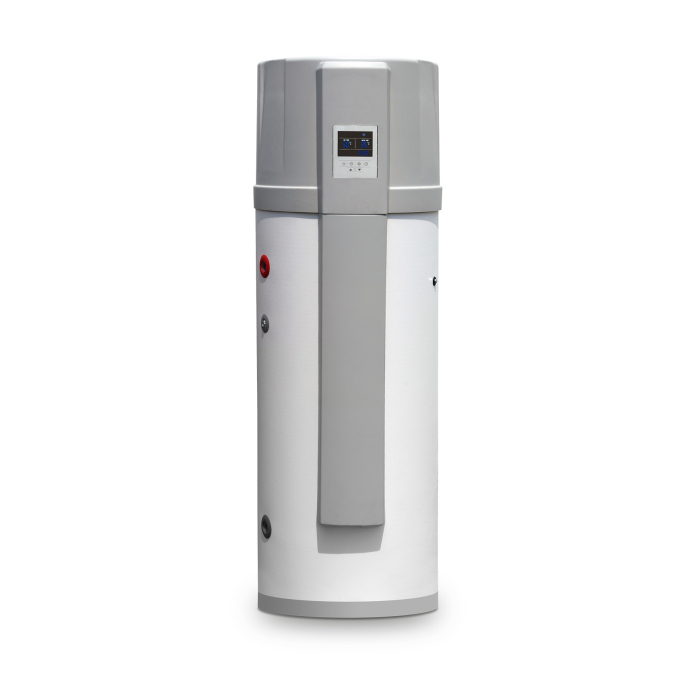

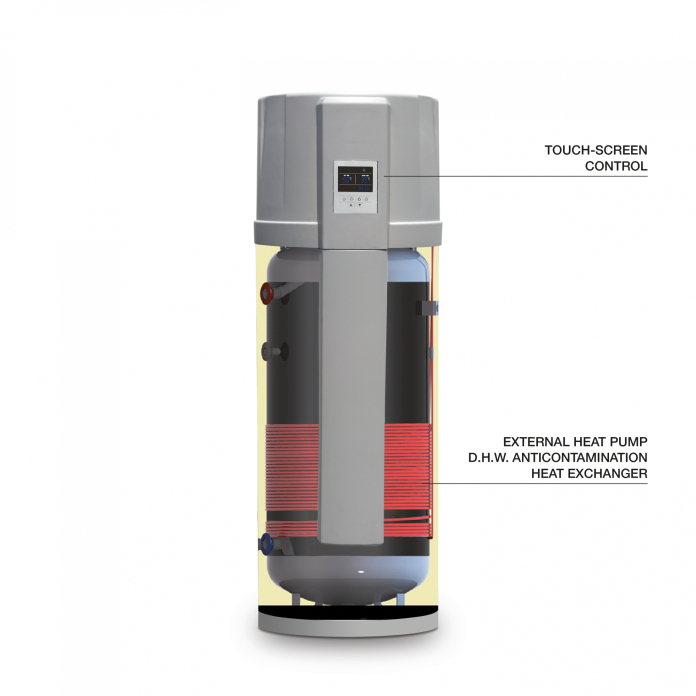

Heat pump water heater

HP 230

Heat pump for D.H.W. production

• D.H.W. production up to 75°C
• 228 liters storage tank with double anticorrosion enamelling, “made in Italy”
• Magnesium anode
• Total insulation in PU foam, 50 mm thick
• Anti-contamination and anti-encrustation aluminium coil heat exchanger outside the storage tank
• Operational temperature range: -10 / +43 °C
• Integrated touch screen control
• Integrated anti-legionella function
• Integrated electric heater 1.2 kW
• Management of the D.H.W. recirculation pump
• Rotary compressor for maximum efficiency and quietness of the unit
• ON-OFF contact to start the unit from external switch
• Dedicated contact for photovoltaic energy optimization with automatic set-point temperature raising of the D.H.W.production
• Easy maintenance thanks to the possibility to cut off the refrigerant circuit independently from the water circuit
• Electronic expansion valve
• Timer
• Auto-restart with automatic restartin case of electrical blackout
• Self-diagnosis
• Antifreeze function
• Optimum solution for installation in laundries or in storerooms for foodstuffs, as it dehumidifies and cools down the environment

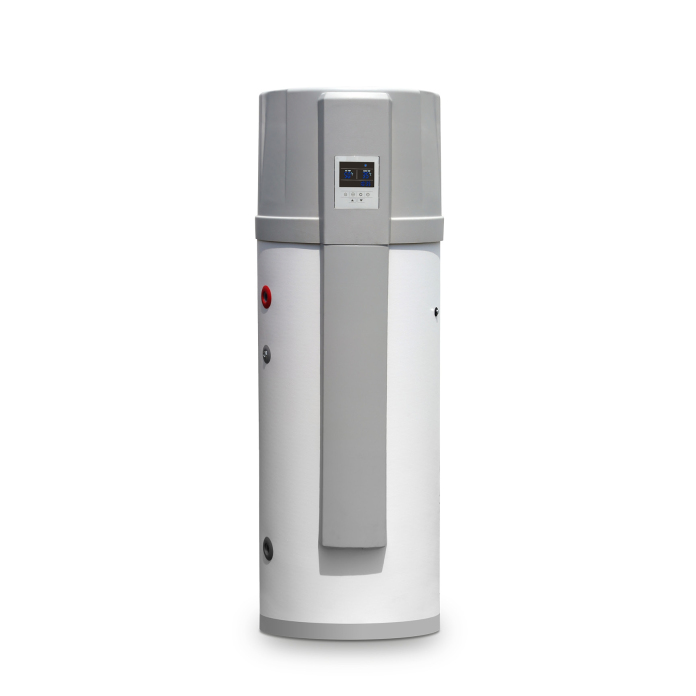

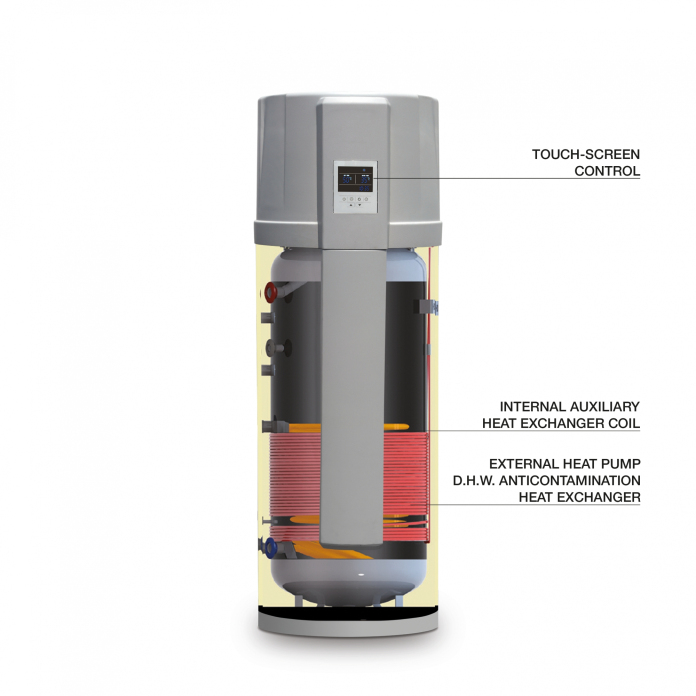

Heat pump water heater

HP 300S

Heat pump for D.H.W. production

• D.H.W. production up to 75°C
• 278 liters storage tank with double anticorrosion enameling, “made in Italy”
• Magnesium anode
• Total insulation in PU foam, 50 mm thick
• Large exchange surface heating coil of 1.2 m2 for auxiliary source
• Anti-contamination and anti-encrustation aluminium coil heat exchanger outside the storage tank
• Operational temperature range: -10 / +43 °C
• Integrated touch screen control
• Integrated anti-legionella function
• Integrated electric heater 1.2 kW
• Rotary compressor for maximum efficiency and quietness of the unit
• ON-OFF contact to start the unit from external switch
• Management of the D.H.W. recirculation pump and solar system integration
• Dedicated contact for photovoltaic energy optimization with automatic set-point temperature raising of the D.H.W. production
• Easy maintenance thanks to the possibility to cut off the refrigerant circuit independently from the water circuit
• Electronic expansion valve
• Timer
• Auto-restart with automatic restart in case of electrical blackout
• Self-diagnosis
• Antifreeze function

Optimum solution for installation in laundries or in storerooms for foodstuffs, as it dehumidifies and cools down the environment
